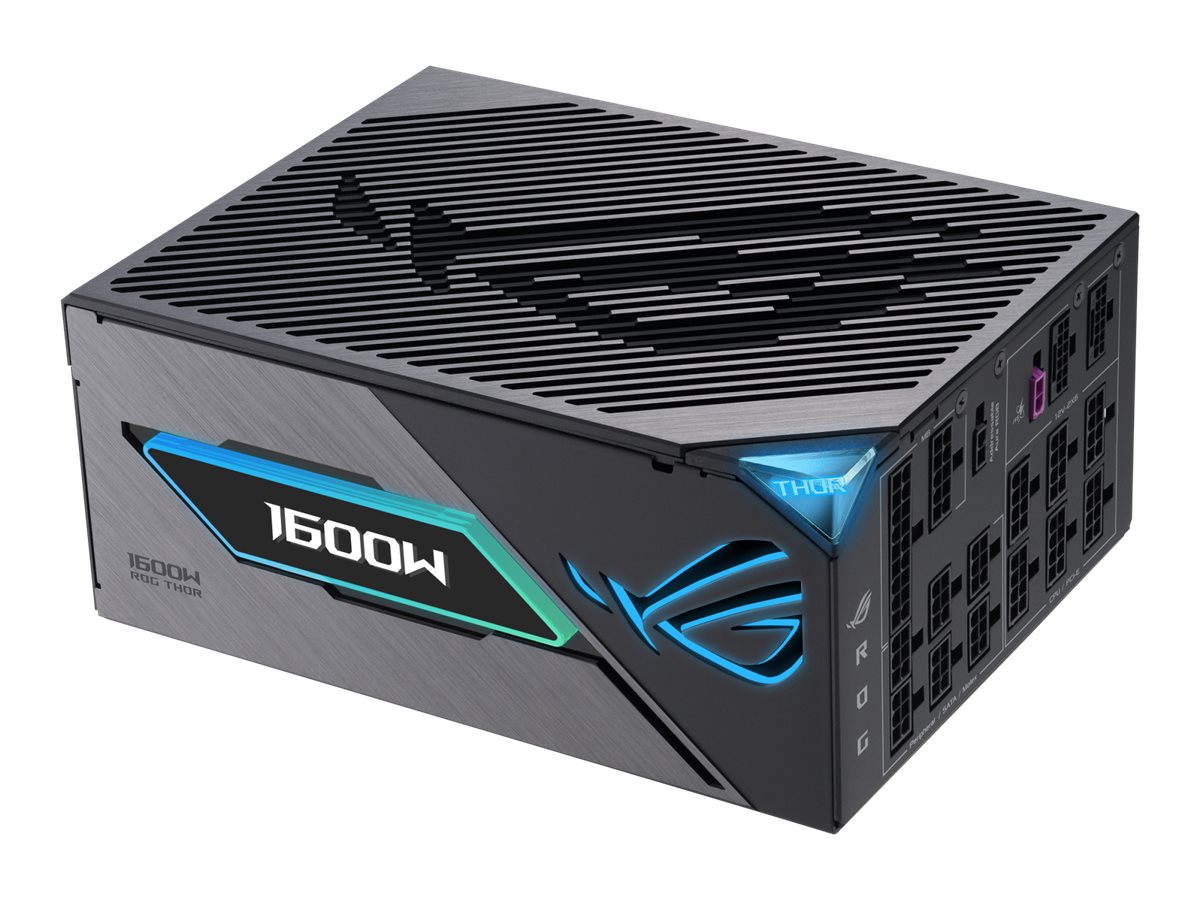

When your rig demands more juice than a typical PSU can deliver, sudden shutdowns and component stress become all-too-common. The ASUS ROG THOR 1600W Titanium III, 24-Pin ATX Grey, Power Supply Unit provides a rock-solid 1600W of clean, stable power, keeping every GPU, CPU and drive humming without interruption, so you can push limits with confidence.
Usages of a 1600W Power Supply
Ideal for high-end gaming rigs, professional workstations and multi-GPU mining rigs, this unit powers demanding builds day after day. Its fully-modular design lets you route cables neatly, while the OLED display shows real-time load, helping you monitor performance during long sessions of gaming, streaming or rendering.
Benefits of ASUS Power Supply
- Stable Voltage: GPU-First sensing keeps graphics performance consistent even under heavy load.
- Ultra-Efficient: 80 PLUS Titanium rating reduces electricity waste and heat, lowering your bill.
- Quiet Operation: Turbo fan with active mode and DBB bearing stay silent during light tasks.
- Future-Proof: Sixteen PCIe connectors and ample SATA/Molex ports support expanding systems.
- Easy Management: Magnetic OLED display can be positioned on either side for quick monitoring.
ASUS Power Supply
Choosing this PSU means you no longer have to gamble on power delivery. With 1600W of output, you can run the latest RTX 4090 cards, overclocked CPUs and multiple storage devices without fearing voltage drops. The GaN MOSFET technology keeps temperatures low, which translates to longer component life and a more reliable system overall. Its sleek grey chassis blends into any build, while the on/off switch and built-in display add a premium touch that matches other ROG gear.
Key Features of a 1600W Power Supply
- Total Output: 1600 W. Provides ample headroom for extreme builds.
- Efficiency Rating: 80 PLUS Titanium. Delivers the highest efficiency class, saving energy.
- MOSFET Type: GaN MOSFET. Reduces heat generation and improves reliability.
- Voltage Sensor: GPU-First voltage sensing. Prioritises stable power for graphics cards.
- Cooling: Turbo fan with active mode. Adjusts speed for quiet operation when load is low.
- Display: Magnetic OLED display. Shows real-time power data and can be moved.
- Modularity: Fully-modular cabling, 100 cm CPU cable. Simplifies cable management.
- Connectors: Four 8-pin PCIe, four 6+2-pin PCIe, ten SATA, nine Molex. Supports numerous devices.
- Dimensions: 86 mm × 200 mm × 150 mm. Fits standard ATX cases without issue.
- Weight: 2.8 kg. Sturdy yet manageable for installation.
Specifications
| Power |
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
25 A |
| Max output current (+12V) |
133.3 A |
| Max output current (+3.3V) |
30 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
125 W |
| Combined power (+12V) |
1600 W |
| Combined power (+3.3V) |
125 W |
| Power Factor Correction (PFC) type |
Active |
| AC input voltage |
100 - 240 V |
| Total power |
1600 W |
| Ports & interfaces |
| Cabling type |
Fully-Modular |
| CPU power cable length |
100 cm |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express power cable length |
75 cm |
| PCI Express power connectors (16-pin) |
2 |
| PCI Express power connectors (6+2 pin) |
4 |
| Peripheral (Molex) power cable length |
150,400 mm |
| Peripheral (Molex) power connectors (4-pin) |
9 |
| SATA power cable length |
120,400 mm |
| Number of SATA power connectors |
10 |
| Motherboard power cable length |
61 cm |
| Motherboard power connector |
20+4 pin ATX |
| Performance |
| Mean time between failures (MTBF) |
120000 h |
| Bearing technology |
DBB |
| Silent mode |
Yes |
| ATX version |
3.1 |
| 80 PLUS certification |
80 PLUS Titanium |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
| On/off switch |
Yes |
| Display type |
OLED |
| Built-in display |
Yes |
| Illumination |
Yes |
| Number of fans |
1 fan(s) |
| Cooling type |
Active |
| Product colour |
Grey |
| Packaging content |
| Cable tie(s) included |
Yes |
| Cables included |
CPU, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions |
| Weight |
2.8 kg |
| Height |
86 mm |
| Depth |
150 mm |
| Width |
200 mm |
| Packaging data |
| Package type |
Box |
| Package weight |
6.3 kg |
| Package height |
159 mm |
| Package depth |
251 mm |
| Package width |
390 mm |
