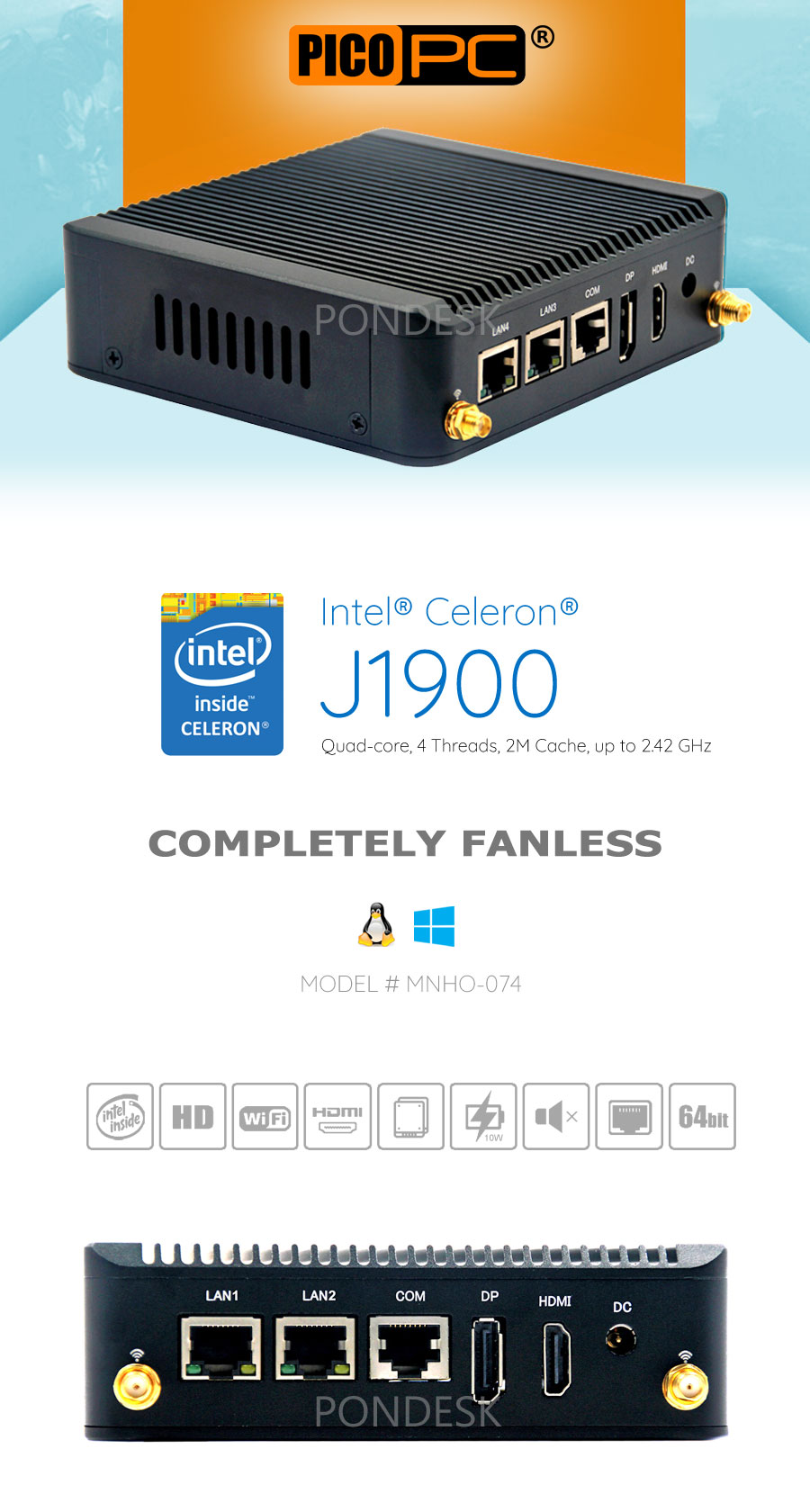

Intel® J1900 2 LAN 1 COM WiFi Dual Display Fanless Mini PC
Availability: In stock


Product Code: MNHO-074
PONDESK PICO PC 2 LAN fanless firewall router security gateway appliance equipped with the quad-core Intel® Celeron® J1900 processor up to 2.42 GHz. A complete network hub as a VPN with RJ45 console port to take on a number of networking and communication tasks.
Small network appliance with dual Intel® I211-AT gigabit Ethernet for high bandwidth and fast communications. Support wireless networks 802.11 b/g/n WiFi. I/O options include four USB2.0 & USB3.0 ports and dual display DP & HDMI ports features Intel® HD Graphics. Compatible with Windows 7/8/10, Windows Server, Linux & Firewalls, etc.
Support up to 8GB SODIMM DDR3L 1.35V low voltage non-ECC single sided memory and dual storage drives including mSATA SSD and 2.5" SATA SSD/HDD. Highly reliable universal performance and 10W (idle) low power consumption helps users getting a much better computing experience.
Completely fanless aluminum alloy compact size durable dustproof structure provides universal performance for small and medium-sized business networks, offices, Internet service providers, MSP/MSSP, etc.
High performance & perfect for home, office, schools, stations, displays, training applications, VPN, DNS Server, DHCP Server, network bandwidth controller, network servers, LAN or WAN router, network firewalls either open-source or commercial. It combines a robust industrial-grade performance and the advantages of network security management can be widely used in virtual private networks, traffic control, network firewalls, or other network applications. Compatible with Windows and Linux etc.
Features:
Intel Celeron® J1900 Processor
Quad-core, 4 Threads, 2.42 GHz

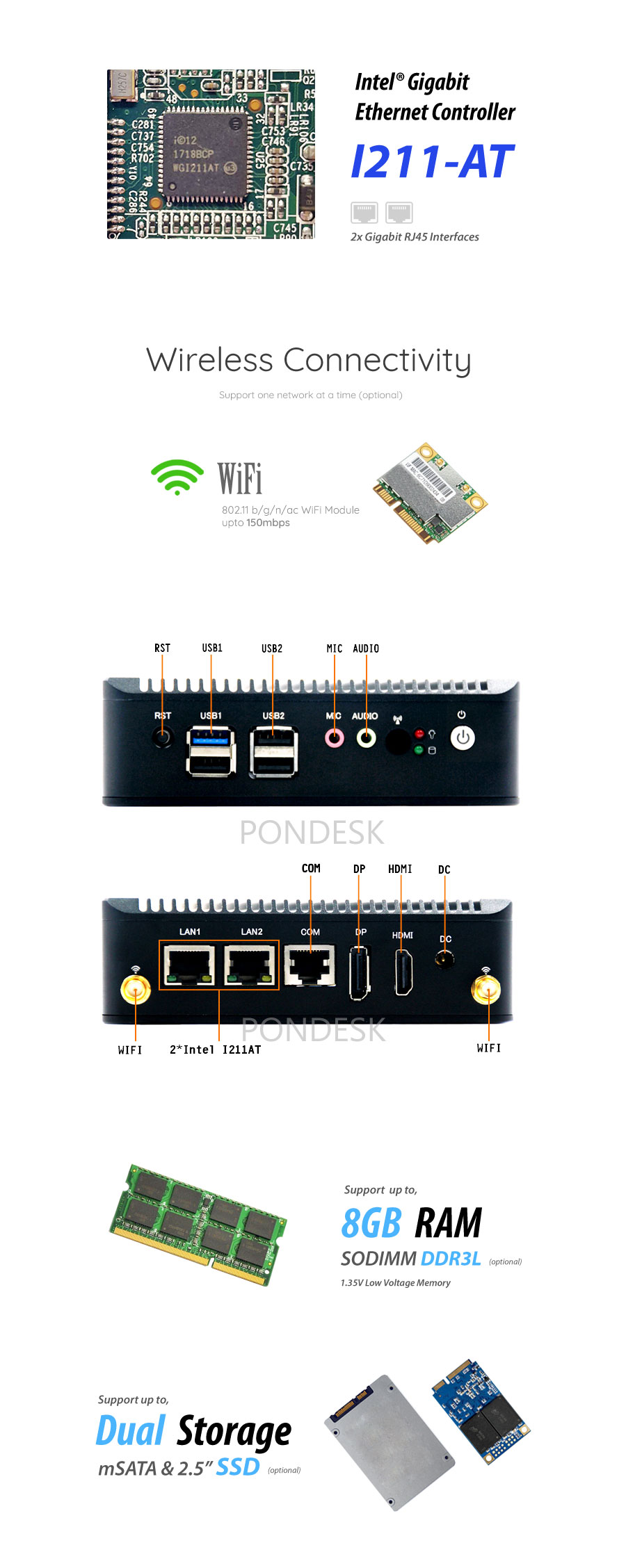

2x Intel I211-AT Gigabit Ethernet
Support WiFi (optional)
Support up to 8GB DDR3L Memory
Support Dual Storage (mSATA SSD & 2.5" SATA SSD/HDD)
HDMI & DP Dual HD Display
Intel® HD Graphics
USB 2.0 & USB 3.0, RJ45 Console

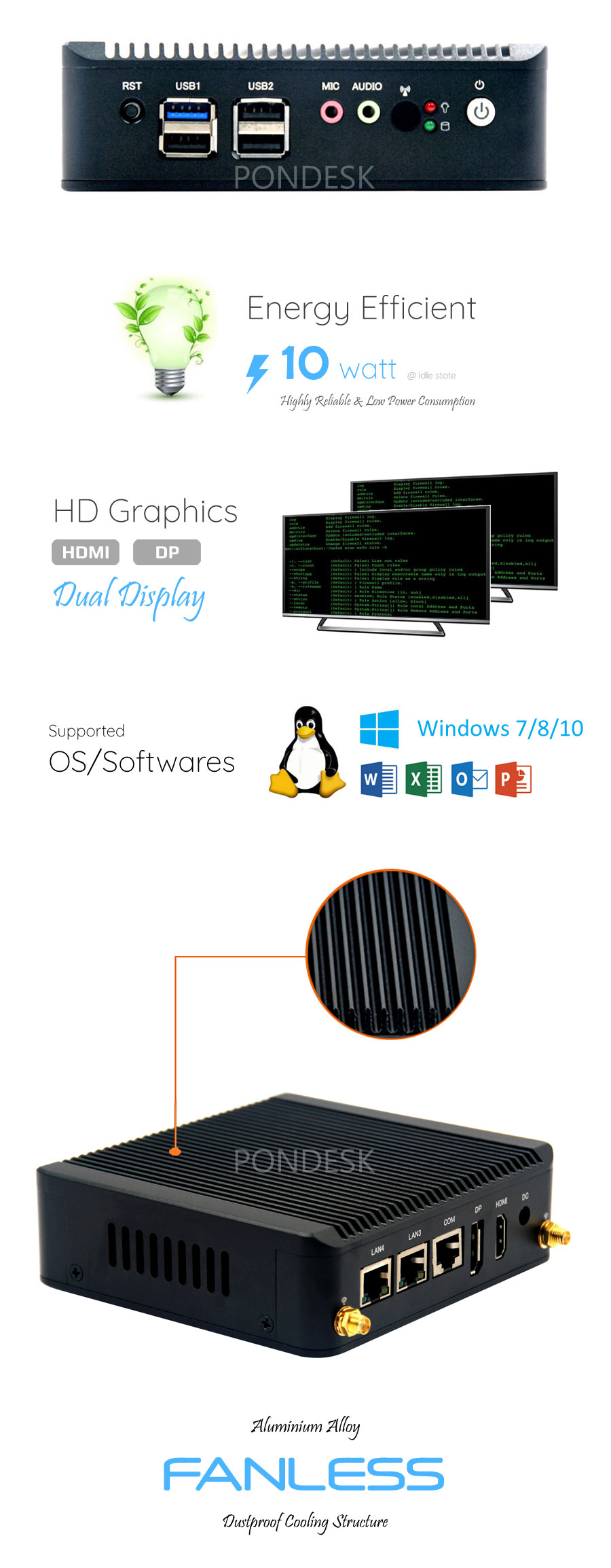

Aluminium Alloy Dustproof Fanless
Energy Efficient 10W (idle) Low Power Consumption

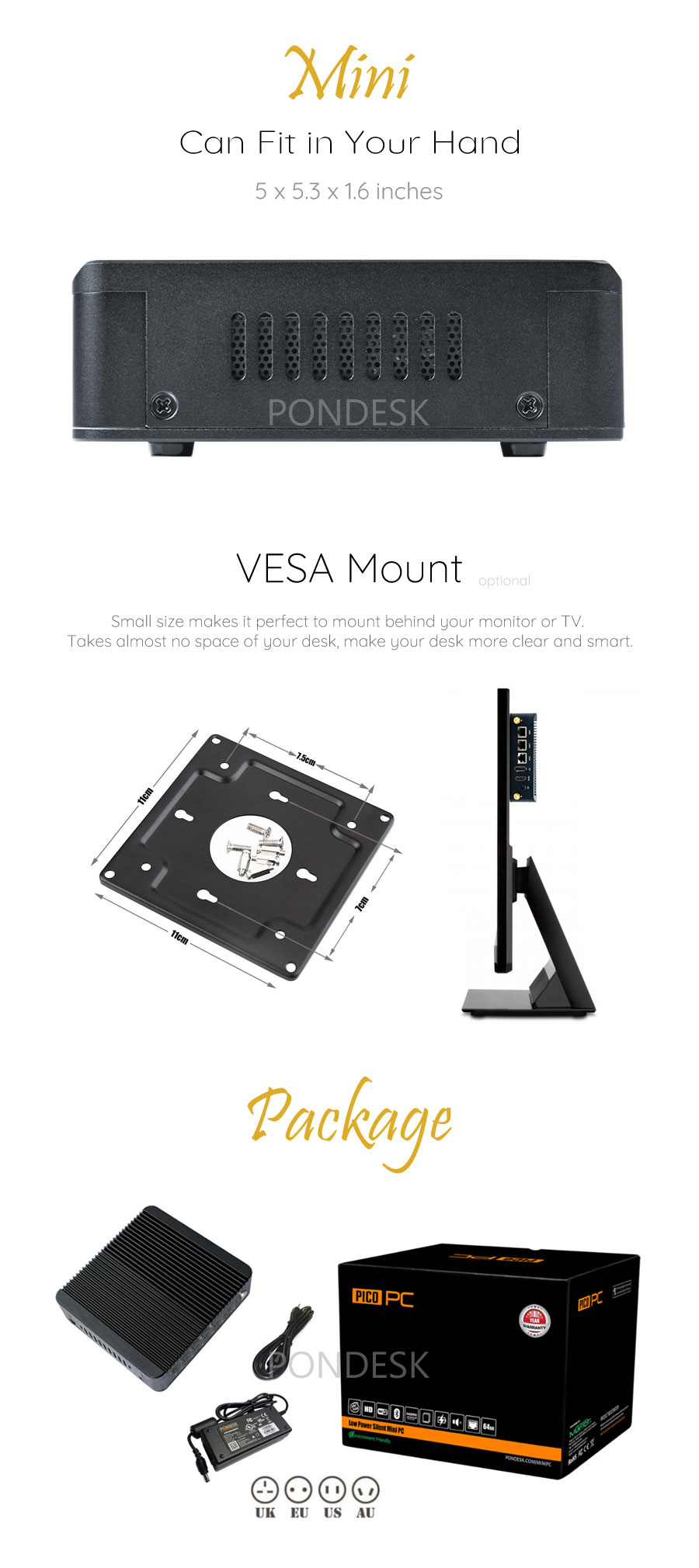

Easy Installation & VESA Mounting Capabilities
Support Windows/Linux/Unix/Firewalls etc.
Small Size and Stylish Design
Perfect for Home, Office, Security Gateway, VPN and Network Firewall, etc.
Specifications:
Click to Show Details
System |
Brand |
PICO PC |
Model |
MNHO-074 |
|
Part Number (P/N) |
MO74J19ND2L1C |
|
Processor |
CPU |
Intel® Celeron® Processor J1900 |
Processor Base Frequency |
2.0 GHz |
|
Burst Frequency |
2.42 GHz |
|
TDP |
10W |
|
Instruction Set |
64 bit |
|
# of Cores |
4 |
|
# of Threads |
4 |
|
Cache |
2 MB L2 |
|
Memory |
Max. Size |
up to 8GB (optional) |
Type |
SODIMM DDR3L 1.35V Low Voltage (non-ECC) |
|
Slot |
1 |
|
Storage |
mSATA |
Support 1 x mSATA SSD (optional) |
SSD/HDD |
Support 1 x 2.5" SATA SSD/HDD 7mm (optional) |
|
eMMC |
Built-In eMMC Storage 32GB/64GB/128GB (optional) |
|
Graphics |
Processor Graphics |
Intel HD Graphics |
Graphics Base Frequency |
688 MHz |
|
Graphics Max Dynamic Frequency |
854 MHz |
|
Intel® Quick Sync Video |
Yes |
|
Resolution |
Max. 1920*1080 via HDMI |
|
Max. 2560*1600 via DP |
||
Advanced Technologies |
Intel® Virtualization Technology (VT-x) |
Yes |
Intel® 64 |
Yes |
|
Enhanced Intel SpeedStep® Technology |
Yes |
|
I/O Specifications |
Display |
1 x HDMI, 1 x DP |
USB port |
3 x USB 2.0, 1 x USB 3.0 |
|
LAN |
2 x Intel I211-AT Gigabit Ethernet |
|
COM |
RJ45 Console |
|
WiFi |
Optional |
|
|
||
Audio |
Mic-in & Line-out |
|
Expansion Slots |
mini PCIe |
Yes (For WiFi) |
mSATA |
Yes (For SSD) |
|
Power Adapter |
Input |
AC 100-240V ~ 50-60Hz |
Output |
DC 12V 5A |
|
Safety & EMC |
UL, CE, FCC, RoHS |
|
EMC EN55022 CLASS B |
||
IEC 60950-1 |
||
Energy saving standards |
Energy Star Ver. 2.0 |
|
DOE Level VI |
||
ErP CoC Version 5 Tier 2 |
||
OS |
Windows |
Support Windows 7, 8, 10 etc. (not included) |
Linux |
Support |
|
Firewalls |
Support pfSense, Untangle, Debian, Sophos etc |
|
Compliance |
Approvals |
CE, FCC, RoHS |
Regulatory |
EMC Emission EN55022 |
|
Others |
System Input |
DC 12V |
Consumption |
10W ~ 15W |
|
Cooling |
Fanless |
|
Chassis |
Aluminum Alloy |
|
Working Temperature |
-10°C ~ 40°C |
|
Size |
126 x 134 x 40.6 mm |
|
Package |
1 x Mini PC, 1 x Power Adopter, 1 x Power Cord |
