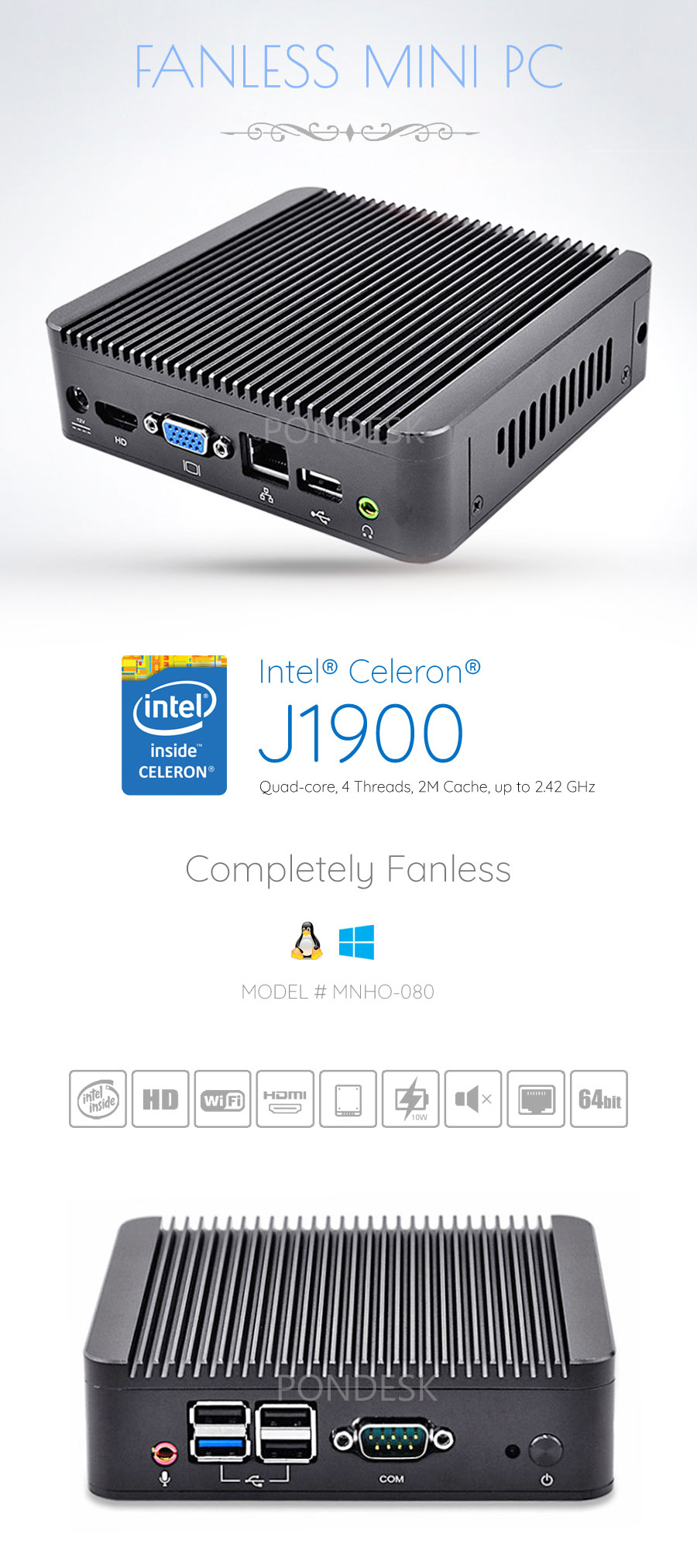

Intel® J1900 4 Core WiFi COM HD Dual Display Fanless Mini PC
Availability: In stock


Product Code: MNHO-080

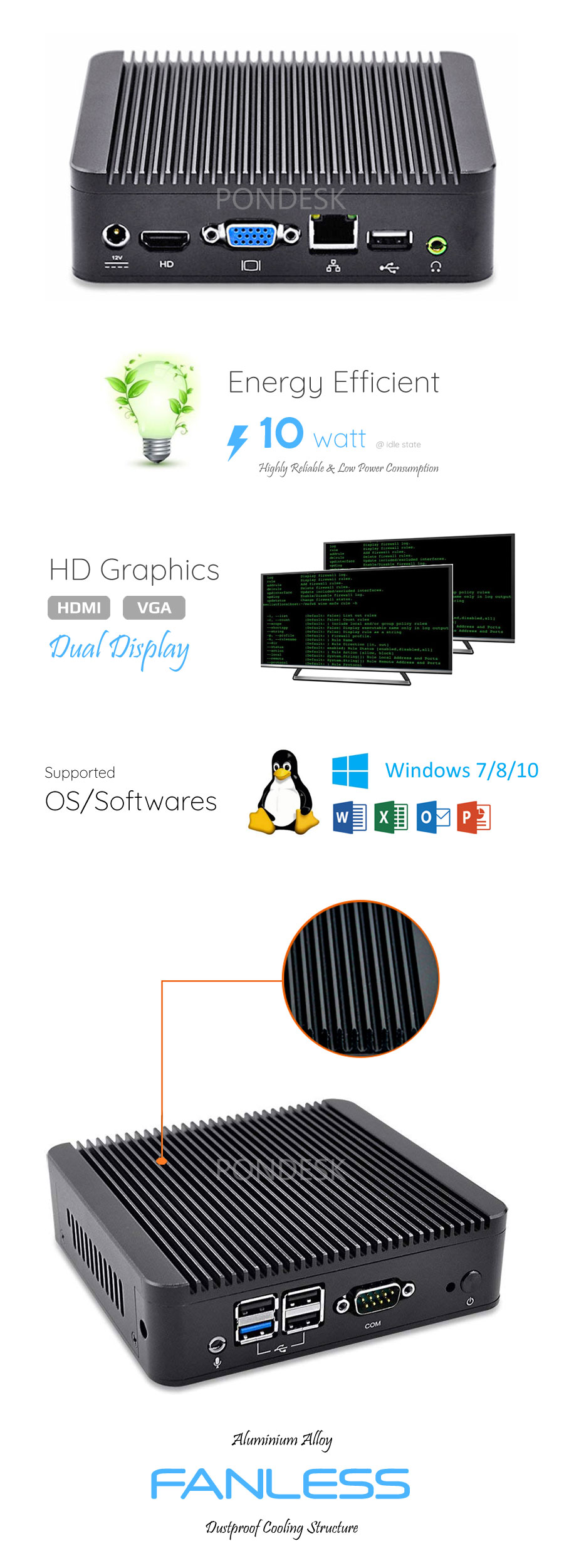

PONDESK PICO PC® fanless Mini PC equipped with the quad-core Intel® Celeron® J1900 processor up to 2.42 GHz. Small appliance with Realtek RTL111E Gigabit Ethernet and RS- 232 DB9 com port for high bandwidth and fast communications.
HDMI & VGA Dual HD display powered by Intel® HD graphics. I/O options include four USB2.0 & one USB 3.0 ports and mic-in & line-out audio ports. Compatible with Windows 7/8/10 and Linux. Support WiFi wireless networks 802.11 b/g/n (optional).
Support up to 8GB SODIMM DDR3L 1.35V low voltage non-ECC single sided memory and mSATA SSD storage drive. Highly reliable universal performance and 10W (idle) low power consumption helps user getting much better computing experience.
Completely fanless aluminium alloy housing acts as a heat sync to cool the internals. Compact size durable dustproof structure provides universal performance for home, office, stations, displays, small-sized business and training applications etc.
Features:
Intel Celeron® J1900 Quad-Core Processor
4 Threads, 2M Cache, up to 2.42 GHz

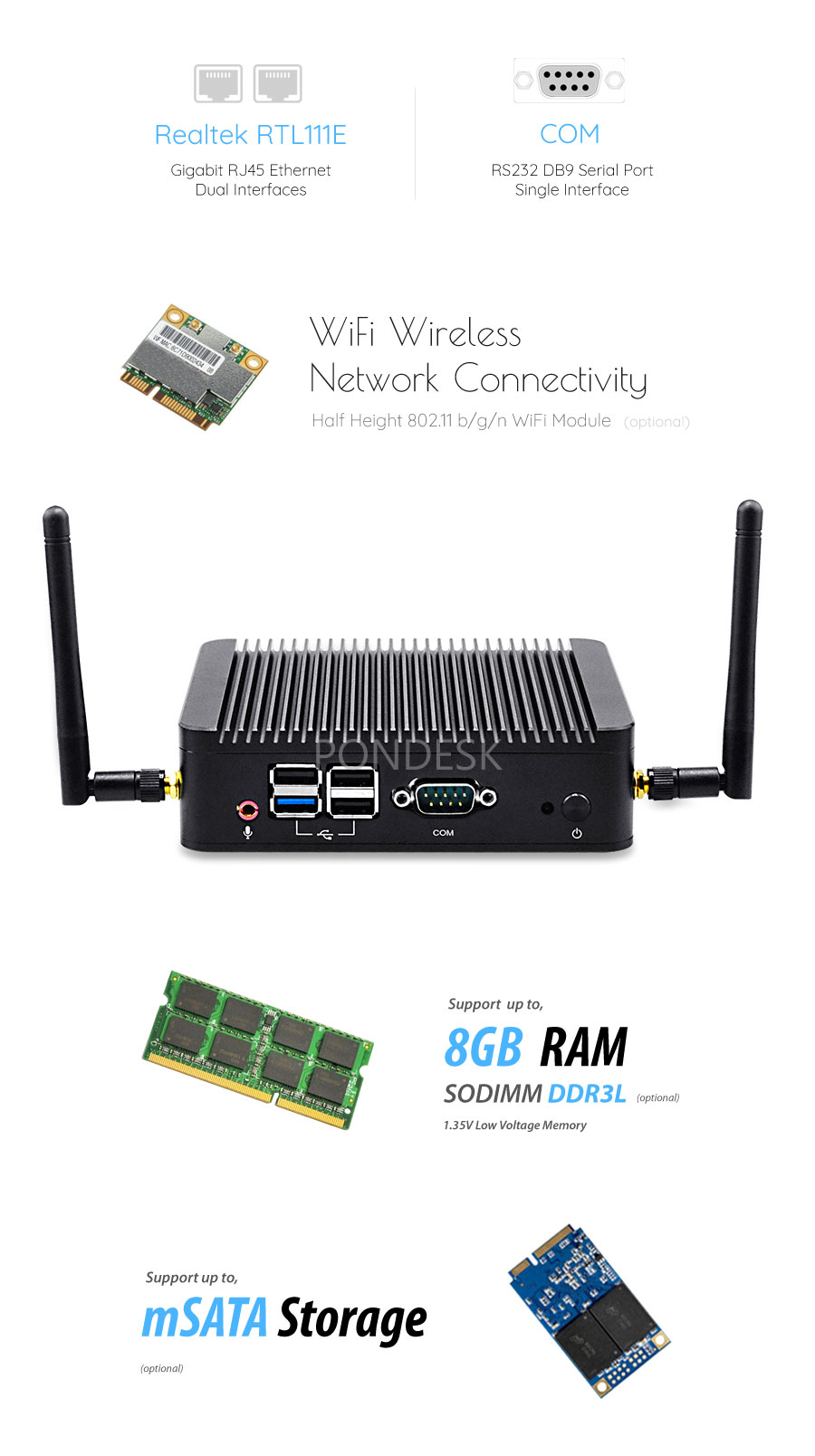

Realtek RTL111E Gigabit Ethernet
RS232 COM Port
Support WiFi Wireless Network (optional)
Support up to 8GB DDR3L Memory
Support mSATA SSD Storage
VGA & HDMI Dual Display
Intel® HD Graphics
USB 2.0, USB3.0
Mic-in & Line-out Audio Support
Aluminium Alloy Dustproof Fanless
Energy Efficient 10W (idle) Low Power Consumption
Easy Installation & VESA Mounting Capabilities
Completely Fanless Aluminium Alloy Dustproof
Small Size and Sleek, Smaller than A4 Paper
Support Windows and Linux
Perfect for Home, Offices, Stations, Displays, Training Applications etc.
Specifications:
System |
Brand |
PICO PC |
Type |
Fanless Mini PC |
|
Model |
MNHO-080 |
|
Part Number (P/N) |
MO80J19MP1L1C |
|
Processor |
CPU |
Intel® Celeron® Processor J1900 |
Processor Base Frequency |
2.0 GHz |
|
Burst Frequency |
2.42 GHz |
|
TDP |
10W |
|
Instruction Set |
64 bit |
|
# of Cores |
4 |
|
# of Threads |
4 |
|
Cache |
2 MB L2 |
|
Memory |
Size |
Support up to 8GB (optional) |
Type |
SODIMM DDR3L 1.35V Low Voltage (non-ECC) |
|
Slot |
1 |
|
Storage |
mSATA |
Support 1 x mSATA SSD (optional) |
Graphics |
Processor Graphics |
Intel HD Graphics |
Graphics Base Frequency |
688 MHz |
|
Graphics Max Dynamic Frequency |
854 MHz |
|
Intel® Quick Sync Video |
Yes |
|
Advanced Technologies |
Intel® Virtualization Technology (VT-x) |
Yes |
Intel® 64 |
Yes |
|
Enhanced Intel SpeedStep® Technology |
Yes |
|
I/O Specifications |
Display |
1 x HDMI, 1 x VGA |
USB |
4 x USB 2.0, 1 x USB 3.0 |
|
LAN |
1 x Realtek RTL8111E Gigabit Ethernet |
|
Serial Port |
1 x RS-232 (COM) |
|
WiFi |
802.11 b/g/n (optional) |
|
Audio |
Realtek ALC662 HD Audio (Line-out & Mic-in) |
|
DC Jack |
5.5 x 2.5 mm |
|
Power Button |
Yes |
|
Expansion Slots |
mSATA |
1 x mSATA (For SSD) |
mini PCIe |
1 x Half Height mini PCIe (For WiFi Module) |
|
Power Adapter |
Input |
AC 100-240V ~ 50-60Hz |
Output |
DC 12V 5A |
|
Safety & EMC |
UL, CE, FCC, RoHS |
|
EMC EN55022 CLASS B |
||
IEC 60950-1 |
||
Energy-saving standards |
Energy Star Ver. 2.0 |
|
DOE Level VI |
||
ErP CoC Version 5 Tier 2 |
||
OS |
Windows |
Support Windows 7, 8, 10 etc. (not included) |
Linux |
Support |
|
Compliance |
Approvals |
CE |
Chassis |
Colour |
Black |
Structure |
Fanless |
|
Material |
Aluminium |
|
Mounting |
VESA Mounting Bracket (optional) |
|
Kensington Lock |
Support |
|
Dimensions |
134 x 128 x 38 mm |
|
Others |
System Input |
DC 12V |
Consumption |
10W ~ 13W (approx.) |
|
Working Temperature |
-10°C ~ 50°C |
|
Humidity |
10% ~ 90% |
|
Weight |
0.5 KG |
|
Package |
1 x Mini PC, 1 x Power Adopter, 1 x Power Cord |
