Intel® J1900 2 LAN 1 COM HD Dual Display Fanless Mini PC
Availability: In stock


Product Code: MNHO-002

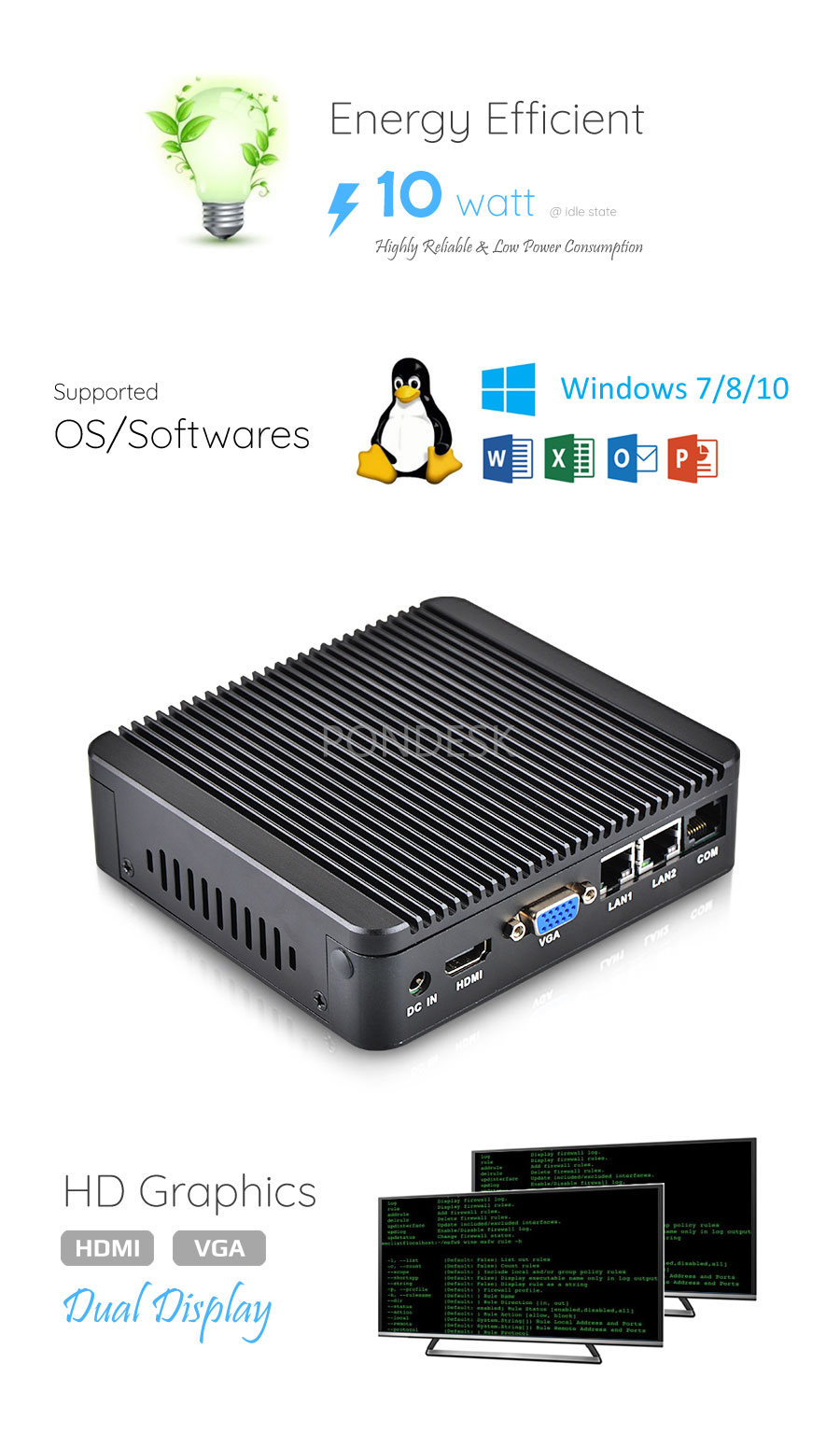

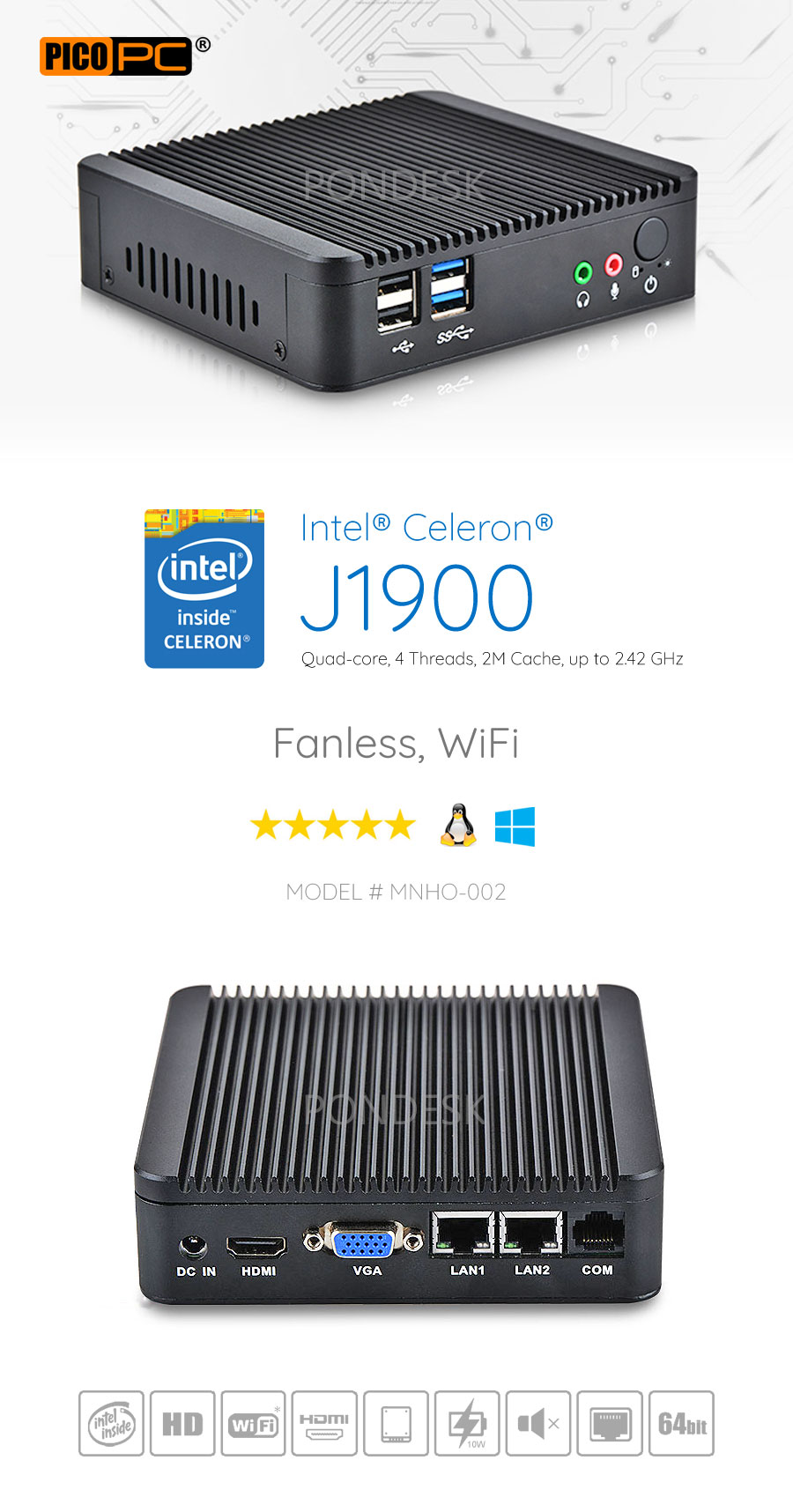

PONDESK PICO PC® fanless Mini PC equipped with the quad-core Intel® Celeron® J1900 processor up to 2.42 GHz. Small appliance with dual Realtek RTL111E gigabit Ethernet and RJ45 console port for high bandwidth and fast communications.
HDMI & VGA Dual HD display powered by Intel® HD graphics. I/O options include two USB2.0, two USB 3.0 ports, and mic-in & line-out audio ports. Compatible with Windows 7/8/10 and Linux. Support WiFi wireless networks 802.11 b/g/n (optional).
Support up to 8GB SODIMM DDR3L 1.35V low voltage non-ECC single sided memory and mSATA SSD storage drive. Highly reliable universal performance and 10W (idle) low power consumption helps users getting a much better computing experience.

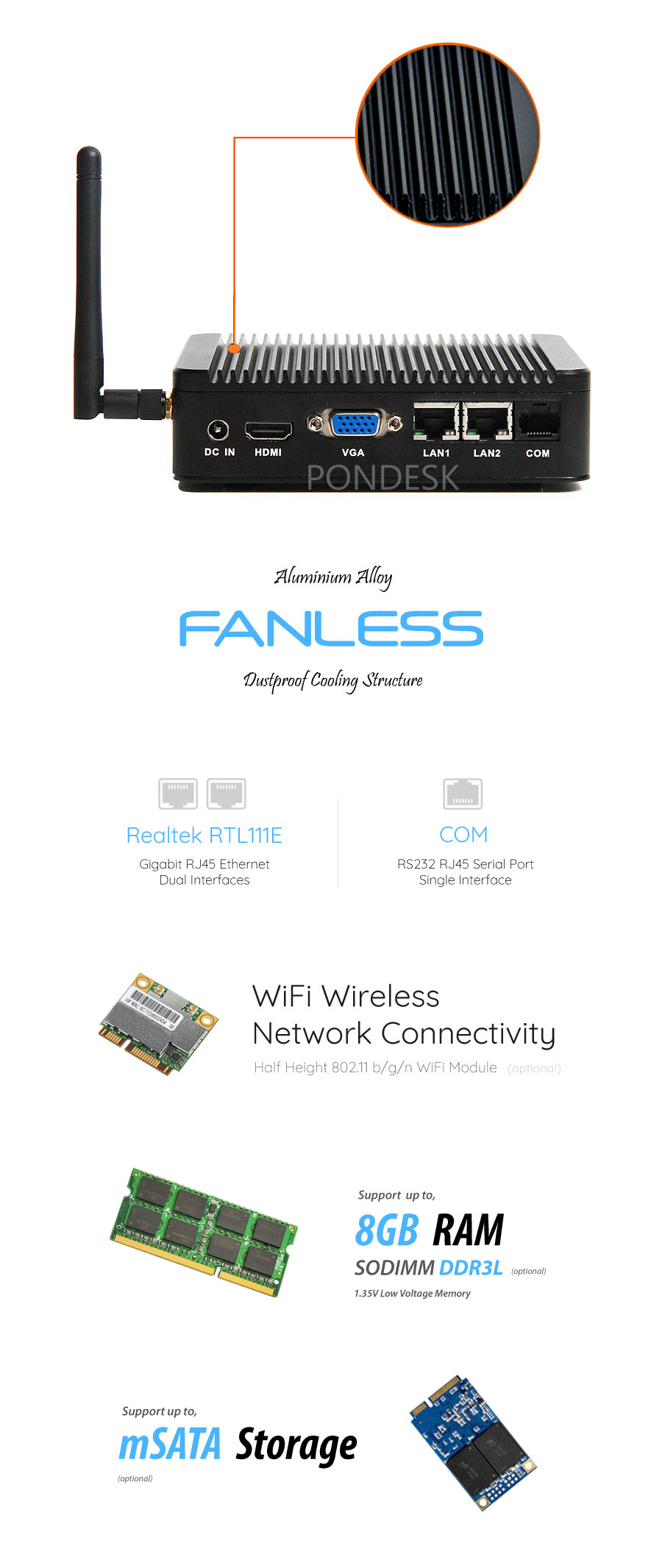

Completely fanless aluminum alloy housing acts as a heat sync to cool the internals. Compact size durable dustproof structure provides universal performance for small and medium-sized business networks, offices, stations, displays, training applications, and networking firewalls, etc.
Features:
Intel Celeron® J1900 Quad-Core Processor
4 Threads, 2M Cache, up to 2.42 GHz
Two Realtek RTL111E Gigabit Ethernet
RJ45 Console Port
Support WiFi Wireless Network (optional)
Support up to 8GB DDR3L Memory
Support mSATA SSD Storage
VGA & HDMI Dual Display
Intel® HD Graphics
USB 2.0, USB3.0
Aluminium Alloy Dustproof Fanless
Energy Efficient 10W (idle) Low Power Consumption
Easy Installation & VESA Mounting Capabilities
Completely Fanless Aluminium Alloy Dustproof
Support Windows and Linux
Perfect for Home, Offices, Stations, Displays, Training Applications, etc.
Specifications:
System |
Brand |
PICO PC |
Model |
MNHO-002 |
|
Part Number (P/N) |
MO02J19MP2L1C |
|
Processor |
CPU |
Intel® Celeron® Processor J1900 |
Processor Base Frequency |
2.0 GHz |
|
Burst Frequency |
2.42 GHz |
|
TDP |
10W |
|
Instruction Set |
64 bit |
|
# of Cores |
4 |
|
# of Threads |
4 |
|
Cache |
2 MB L2 |
|
Memory |
Size |
up to 8GB (optional) |
Type |
SODIMM DDR3L 1.35V Low Voltage (non-ECC) |
|
Slot |
1 |
|
Storage |
mSATA |
Support 1 x mSATA SSD (optional) |
Graphics |
Processor Graphics |
Intel HD Graphics |
Graphics Base Frequency |
688 MHz |
|
Graphics Max Dynamic Frequency |
854 MHz |
|
Intel® Quick Sync Video |
Yes |
|
Advanced Technologies |
Intel® Virtualization Technology (VT-x) |
Yes |
Intel® 64 |
Yes |
|
Enhanced Intel SpeedStep® Technology |
Yes |
|
I/O Specifications |
Display |
1 x HDMI, 1 x VGA |
USB |
2 x USB 2.0, 2 x USB 3.0 |
|
LAN |
2 x Realtek RTL111E Gigabit Ethernet |
|
COM |
RJ45 RS232 Serial Port |
|
WiFi |
Optional |
|
Audio |
Mic-in & Line-out |
|
Expansion Slots |
mini PCIe |
Yes (For WiFi module) |
mSATA |
Yes (For mSATA SSD) |
|
Power Adapter |
Input |
AC 100-240V ~ 50-60Hz |
Output |
DC 12V 5A |
|
Safety & EMC |
UL, CE, FCC, RoHS |
|
EMC EN55022 CLASS B |
||
IEC 60950-1 |
||
Energy saving standards |
Energy Star Ver. 2.0 |
|
DOE Level VI |
||
ErP CoC Version 5 Tier 2 |
||
OS |
Windows |
Support Windows 7, 8, 10 etc. (not included) |
Linux |
Support |
|
Others |
System Input |
DC 12V |
Consumption |
10W ~ 15W |
|
Cooling |
Fanless |
|
Chassis |
Aluminum Alloy |
|
Working Temperature |
-10°C ~ 40°C |
|
Size |
124 x 134 x 36 mm |
|
Package |
1 x Mini PC, 1 x Power Adopter, 1 x Power Cord |
