Intel 3855U 6 LAN 1 COM WiFi 4G Firewall 1U Rackmount Server
Availability: In stock


Product Code: NSHO-002
The PONDESK 1U rackmount security gateway appliance can be configured as a firewall, LAN or WAN router, VPN, DNS Server, DHCP Server to deliver high throughput, reliable operation, high performance, and a wide array of network applications including UTM, VPN, VMware ESXi firewall and gateways like pfSense, Sophos, Untangle, ClearOS, Monowall, Linux, Unix, and Windows® Server, etc.
Powered by the low power consumption 6th generation Skylake series dual-core Intel® Celeron® processor 3855U features Intel® AES-NI and Secure Key for secure and fast data encryption and decryption. In addition to six Intel® I210-AT Ethernet (support wake on LAN/PXE) and one RJ45 serial communication port (CISCO standard).
The PONDESK Server comes with two DDR4 SODIMM memory slots, can support up to 32GB non-ECC memory. Support dual storage (mSATA SSD and 2.5inch SATA SSD/HDD drives) for sufficient storage. (Note: mSATA can be replaced with M.2 for quantity orders, please contact us for details and pricing)
It also supports wireless communication of 802.11 b/g/n Wi-Fi, 3G/4G LTE WWAN networks via PCIe express slot. I/O options include two USB 2.0 ports, a serial console port, power & reset switches, and a VGA display port that features Intel® HD Graphics 510.
PONDESK 1U rackmount network appliance NSHO-002 with a competent level of performance, wireless support, and throughput to address growing concerns over network security and deters security threats to protect network communication in (SOHO) small and home offices. Can fulfill network communication needs of small & medium businesses, branch offices, and SOHO networks; while enabling the implementation of security measures to protect intellectual property assets, business reputation, and sensitive data with reliability and versatility.
Fast, reliable, energy-efficient 15W (idle) power consumption and low-cost network security solution.
A perfect multi-purpose embedded appliance.
Features:
1U Rackmount Security Gateway Appliance
Can be configured as a Firewall, LAN/WAN Router, VPN, DNS Server, DHCP Server
6th Generation Skylake Series Intel® Celeron® Processor 3855U
Dual-Core, 2M Cache, 1.60 GHz

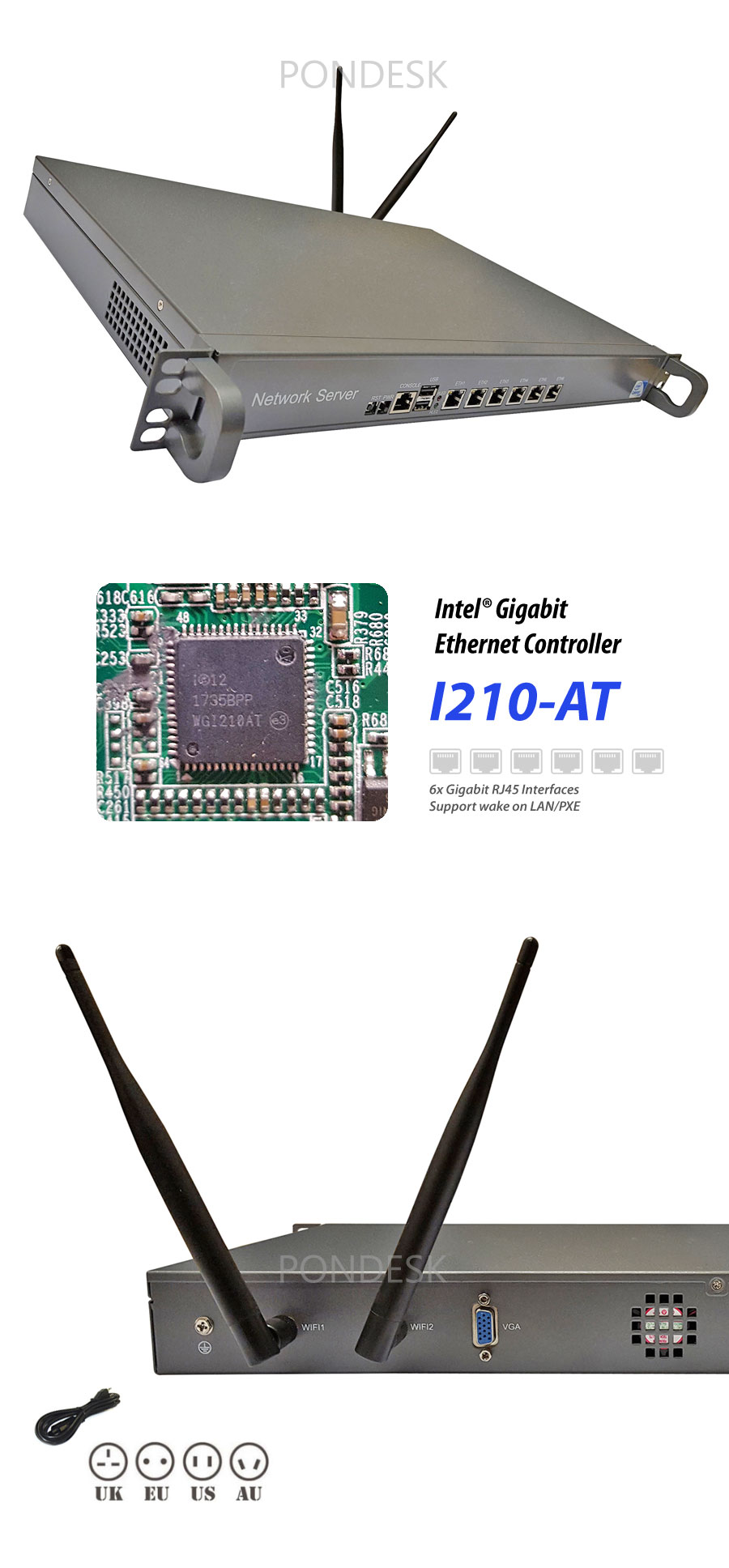

6x Intel® I210-AT Gigabit Ethernet (Support Wake on LAN/PXE)
RJ45 Serial Communication Port (CISCO Standard)
Support up to 32GB SODIMM DDR4 Memory
Support Dual Storage (mSATA & 2.5" SATA SSD/HDD)
VGA Display Features Intel® HD Graphics 510
Intel® AES-NI and Secure Key
Support 3G/4G LTE WWAN Networks (optional)
Support 802.11 b/g/n WiFi (optional)
USB 2.0
Energy Efficient 15W (idle) Low Power Consumption
Ready for IoT - Simply Connected Using 3G/4G LTE via Mini PCIe
Support Windows/Windows Server/Linux/Unix/Firewalls/Hypervisor etc.
Perfect for Security Gateway, Server, VPN, and Firewall such as pfSense, Untangle, Sophos, Smoothwall, ClearOS, m0n0wall, etc.
Specifications:
Click to Show Details
System |
Type |
1U Rackmount Network Server |
Model |
NSHO-002 |
|
Part Number (P/N) |
NO026G1UND6L1C |
|
Processor |
CPU |
Intel® Celeron® Processor 3855U |
Generation |
6th Generation Skylake |
|
Processor Base Frequency |
1.60 GHz |
|
TDP |
15W |
|
Instruction Set |
64 bit |
|
# of Cores |
2 |
|
# of Threads |
2 |
|
Cache |
2 MB SmartCache |
|
Memory |
Max. Size |
Support up to 32GB (2x16GB) (optional) |
Type |
SODIMM DDR4 2133MHz (non-ECC) |
|
Slot |
2 x SODIMM |
|
Storage |
mSATA |
Support 1 x mSATA SSD (optional) |
2.5" SATA |
Support 1 x 2.5" SATA SSD/HDD (optional) |
|
M.2 |
Optional |
|
(Note: mSATA can be replaced with "M.2 2242" for quantity orders, please contact us for pricing) |
||
Graphics |
Processor Graphics |
Intel® HD Graphics 510 |
Graphics Base Frequency |
300 MHz |
|
Graphics Max Dynamic Frequency |
900 MHz |
|
Intel® Quick Sync Video |
Yes |
|
Intel® Clear Video HD Technology |
Yes |
|
Advanced Technologies |
Intel® Virtualization Technology (VT-x) |
Yes |
Intel® Virtualization Technology for Directed I/O (VT-d) |
Yes |
|
Intel® VT-x with Extended Page Tables (EPT) |
Yes |
|
Intel® 64 |
Yes |
|
Idle States |
Yes |
|
Enhanced Intel SpeedStep® Technology |
Yes |
|
Thermal Monitoring Technologies |
Yes |
|
Intel® Flex Memory Access |
Yes |
|
Intel® Identity Protection Technology |
Yes |
|
Intel® Smart Response Technology |
Yes |
|
Security & Reliability |
Intel® AES New Instructions |
Yes |
Secure Key |
Yes |
|
Execute Disable Bit |
Yes |
|
I/O Specifications |
Display Port |
1 x VGA |
USB Port |
2 x USB 2.0 |
|
LAN |
6 x Gigabit Ethernet Ports |
|
Intel I210-AT Gigabit Ethernet Controller |
||
Support Wake on LAN/PXE |
||
|
||
COM |
1 x RJ45 COM (CISCO standard) |
|
802.11 b/g/n WiFi (PCIe Module) |
optional |
|
3G/4G (PCIe Module) |
optional |
|
Reset Switch |
Yes |
|
Power Switch |
Yes |
|
Power & HDD LED |
Yes |
|

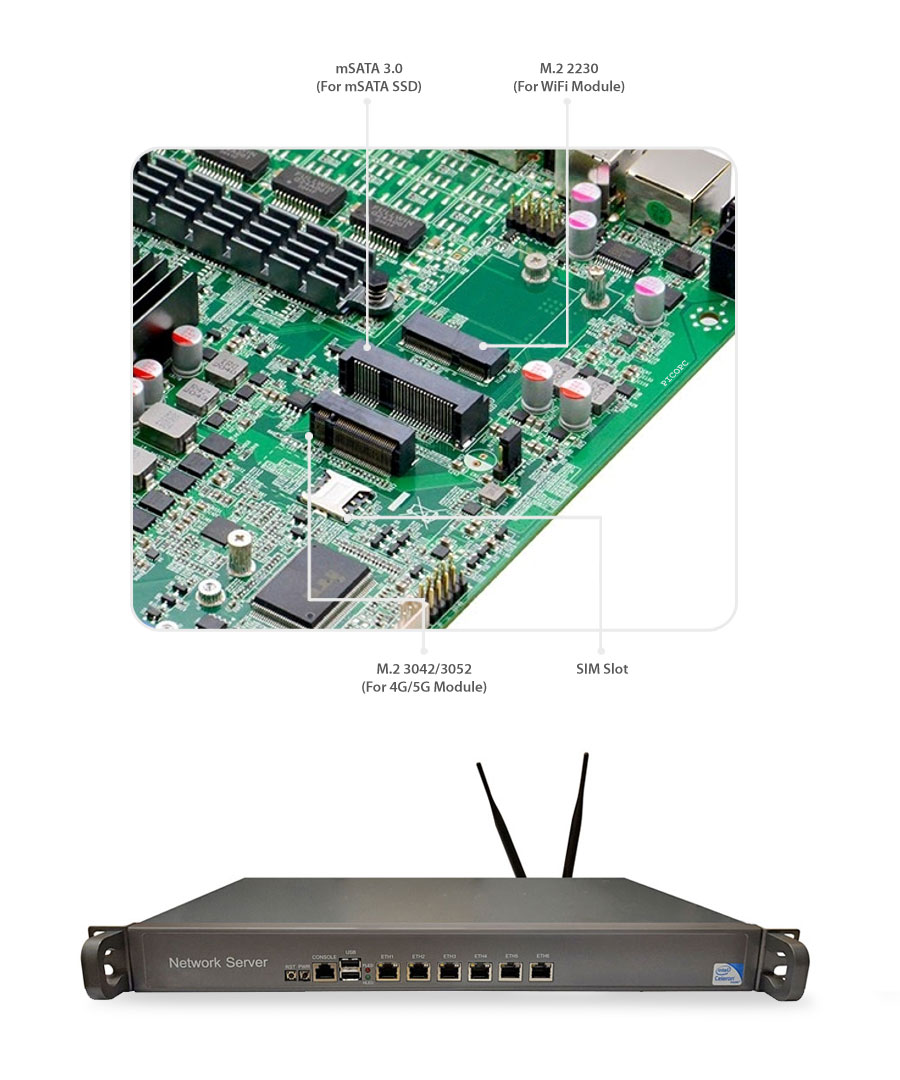

Expansion Slots |
mSATA |
Yes (For mSATA SSD) |
mini PCIe |
Yes (For WiFi/WWAN module) |
|
2.5" SATA |
Yes (For 2.5" SATA SSD/HDD) |
|
SIM Slot |
Yes |
|
Internal I/O |
JVGA1 |
1 x JVGA1 (2*1 2pin) |
COM |
1 x RS232 Serial Port (2*5pin) |
|
LAN LED |
2 x LAN_LED (2*13pin) |
|
USB2.0 |
2 x USB2.0 (2*5pin) |
|
USB3.0 |
1 x USB3.0 (2*10pin) - support 2*USB3.0 |
|
PS/2 |
1 x PS/2 KB/MS (1*6pin) |
|
FP1 |
1 x FP1 Front Panel Function Connector (2*5pin) |
|
SIM |
1 x SIM Connector (1*6pin) |
|
HDD Power |
1 x HDD Power Connector (1*4pin) |
|
SATA |
1 x SATA3.0 |
|
ATX |
1 x ATX 1U 4pin Connector |
|
FAN Interface |
1 x CPUFAN (4pin) |
|
1 x SYSFAN (3pin) |
||
WWAN 3G |
Type |
Quad-Band UMTS/HSPA + (3G) |
UMTS Bands |
B1 (2100), B2 (1900), B26 (850), B8 (900) |
|
GSM/EDGE Bands |
850, 900, 1800, 1900 |
|
Max. Download Speed |
14.4 Mbps |
|
Max. Upload Speed |
5.76 Mbps |
|
WWAN 4G |
Type |
LTE - Cat 4 |
LTE Bands |
B1 (2100), B2 (1900), B3 (1800), B4 (AWS), B7 (2600), B8 (900), B20 (800DD), B5 (850) |
|
UMTS Bands |
B8 (900), B26 (850), B2 (1900), B1 (2100) |
|
GSM/EDGE Bands |
1900, 1800, 900, 850 |
|
Max. Download Speed |
150 Mbps |
|
Max. Upload Speed |
50 Mbps |
|
OS |
Windows |
Support Windows 10 & Windows Server (not included) |
Hypervisor |
Support VMware ESXi and VirtualBox |
|
Firewalls/OS |
Support Linux, Unix, pfSense, Untangle, Sophos, etc. |
|
Power |
Input |
100~240V - 50-60Hz |
Type |
ATX |
|
Consumption |
15W (idle) |
|
Cord Socket |
C14 |
|
Working Environment |
Operating Temperature |
-10C ~ 60C |
Storage Temperature |
-20C ~ 70C |
|
Relative Humidity |
5% - 95% (relative humidity; non-condensing) |
|
Vibration |
0.5g rms/5-500HZ/random/operating |
|
Chassis |
Type |
1U Rackmount |
Material |
Galvanized Steel |
|
Color |
Gray |
|
Compliance |
Approvals |
CE |
Regulatory |
IEC 60950, EMC Emission EN 55032, EN 61000, EN 55024 |
|
Others |
BIOS |
AMI 64MB Flash ROM |
Cooling |
CPU FAN + Two Chassis FAN |
|
Watchdog |
Support Hardware Reset Function (L256, 0~255 seconds) |
|
Size |
430mm x 280mm x 45mm (L*W*H) |
|
Package |
1 x Network Server, 1 x Power Cord |
