Intel® 3805U WiFi 4G 6 COM 2 LAN Fanless Industrial Mini PC
Availability: In stock


Product Code: MNHO-067

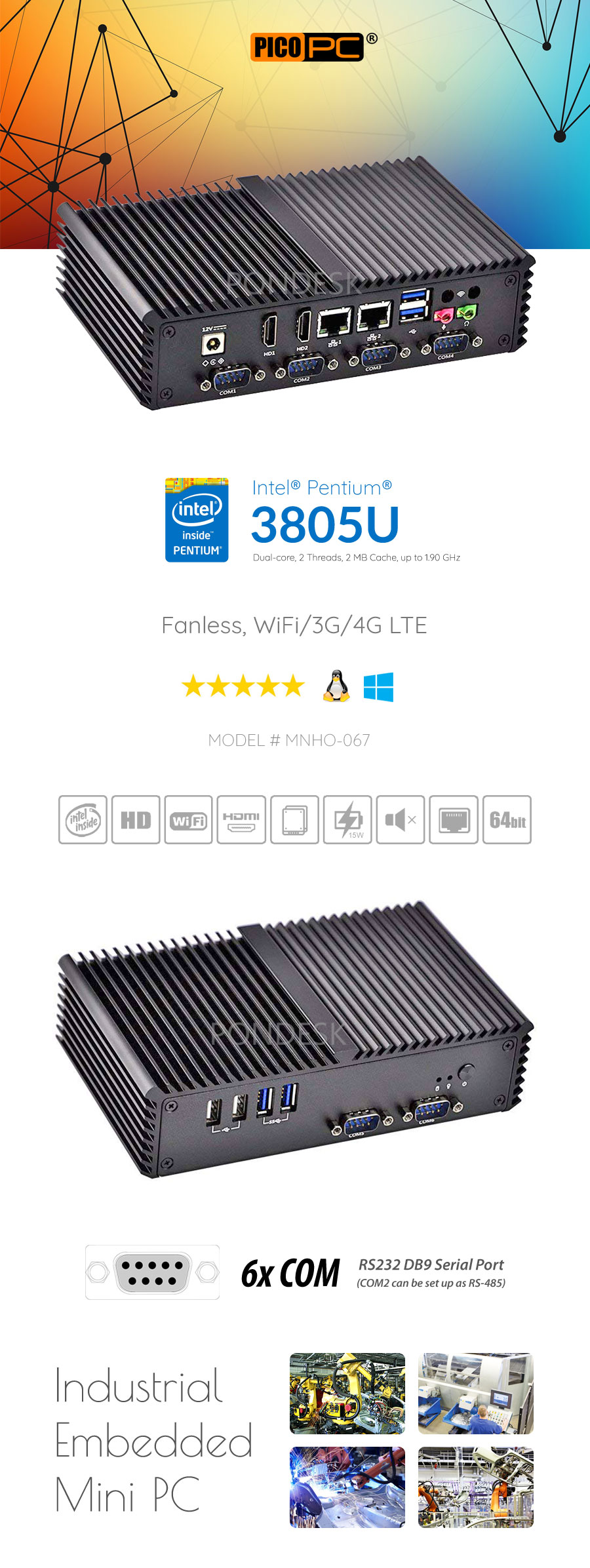

PONDESK PICO PC industrial IPC embedded system equipped with the dual-core Intel® core™ 3805U processor with 2M cache and up to 1.90 GHz speed.
Fanless rugged computing for controlling, operating automation of industrial processes and monitoring systems and machines in the most challenging manufacturing and process environments and to take on a number of networking and communication tasks. Small industrial appliance with dual Intel® I211-AT gigabit Ethernet and six RS232 DB9 serial ports (COM2 can be set up as RS-232/RS-485) for high bandwidth and fast communications.

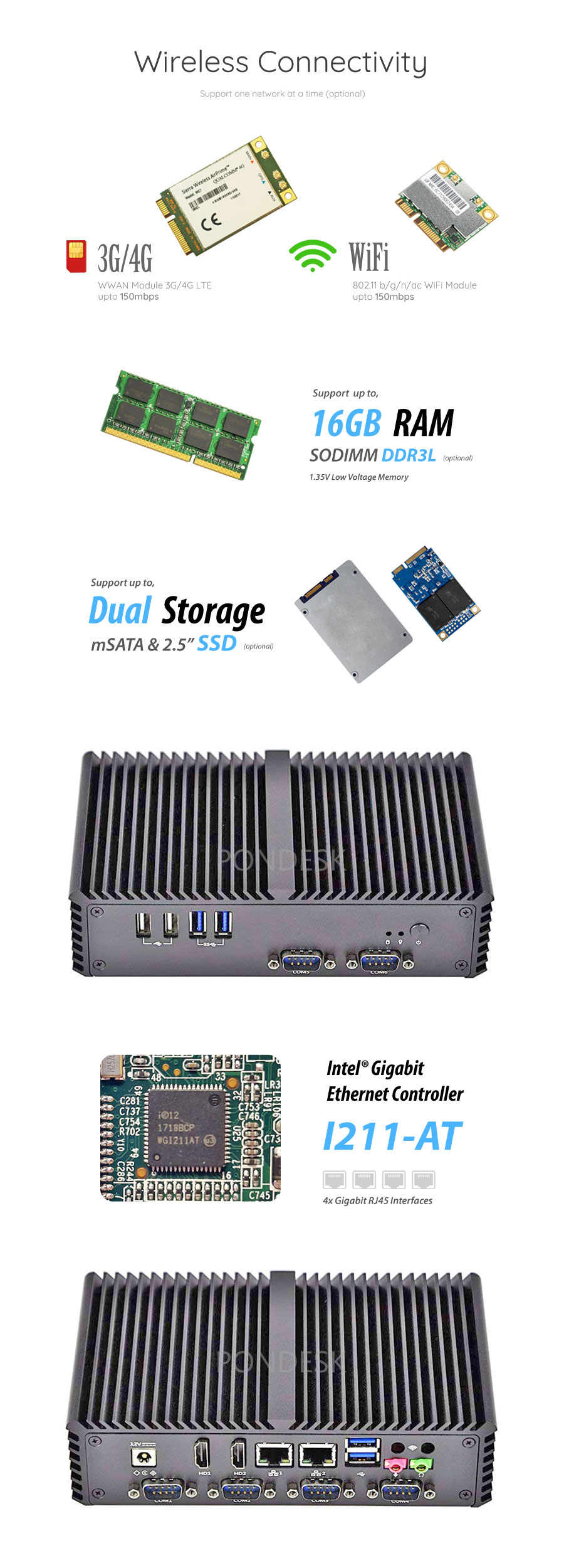

Support wireless networks 802.11 b/g/n WiFi and WWAN 3G & 4G LTE (optional). Ready for IoT (Internet of Things) by simply connecting using WiFi, 3G/4G LTE via mini PCIe (can use only one network connection at a time). I/O options include six USB3.0 & USB2.0 ports and dual HDMI display ports that feature Intel® HD graphics. Compatible with Windows 10, Linux & Firewalls, etc.
Support up to 16GB SODIMM DDR3L 1.35V low voltage non-ECC single sided memory and dual storage drives including mSATA SSD and 2.5" SATA SSD/HDD. Highly reliable universal
performance and 15W (idle) low power consumption helps users getting a much better computing experience.

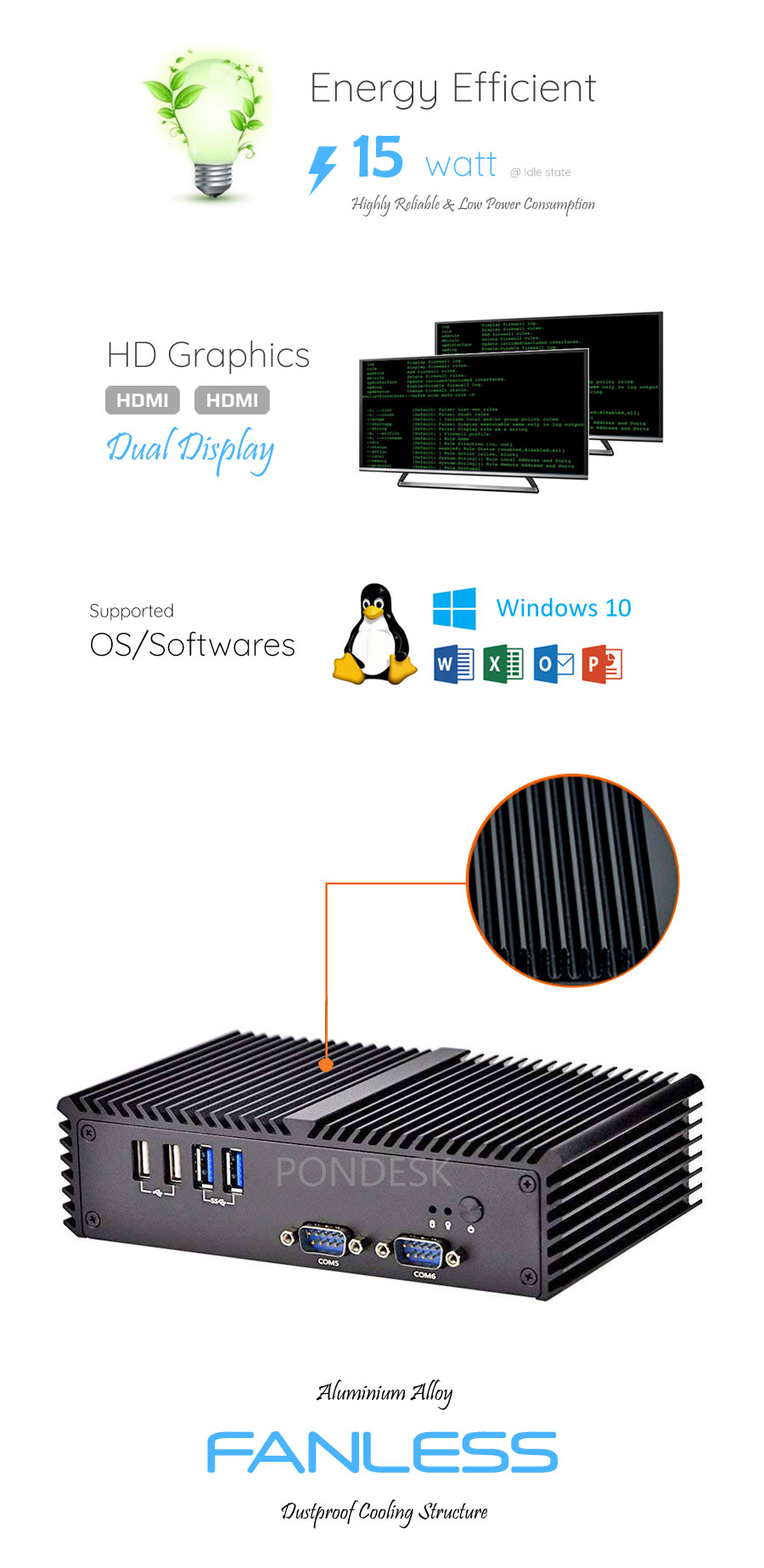

Completely fanless aluminum alloy compact size durable dustproof extremely flat housing with a height of just 50mm. Perfect heat dissipation to cool the internals and increase the work efficiency and capacity to get longer product life and reliable silent running. The system can easily be mounted behind an LCD monitor via VESA mount to get more space on your desk.
Features:
Small Industrial IPC, Fanless Mini PC
Intel® Core™ 3805U dual-core Processor
2 Threads, 2 MB Cache, up to 1.90 GHz
Two Intel I211-AT Gigabit Ethernet
Dual HDMI Dual Display
Intel® HD Graphics 4400
Six RS-232 COM Ports (COM2 can be set up as RS-485)
Support 802.11 b/g/n WiFi (optional)
Support 3G/4G LTE (optional)
Support up to 16GB DDR3L Memory
Support Dual Storage (mSATA SSD & 2.5" SATA SSD/HDD)
Four USB3.0 & Two USB 2.0 Ports
Aluminium Alloy Dustproof Fanless
Energy Efficient 15W (idle) Low Power Consumption
Easy Installation & VESA Mounting Capabilities
Support Windows 10 & Linux etc.
Perfect for Industrial Automation, Manufacturing Process, Displays, Stations and Training Applications, etc.
Specifications:
System |
Brand |
PICO PC® |
Model |
MNHO-067 |
|
Part Number (P/N) |
MO6738UIP2L6C |
|
Processor |
CPU |
Intel® Pentium® 3805U |
Generation |
4th |
|
Processor Base Frequency |
1.90 GHz |
|
TDP |
10-15W |
|
Instruction Set |
64 bit |
|
# of Cores |
2 |
|
# of Threads |
2 |
|
Cache |
2 MB Cache |
|
Lithography |
22 nm |
|
Memory |
Size |
Support up to 16GB (optional) |
Type |
SODIMM DDR3L 1.35V Low Voltage (Single-Sided) Memory |
|
Slots |
1 |
|
Storage |
mSATA |
1 x mSATA SSD (optional) |
2.5" SATA |
1 x 2.5" SATA SSD/HDD (optional) |
|
Graphics |
Processor Graphics |
Intel® HD Graphics for 5th Generation Intel® Processors |
Graphics Max Dynamic Frequency |
800 MHz |
|
Ports |
Dual HDMI |
|
Features |
Intel® Quick Sync Video |
|
Intel® InTru™ 3D Technology |
||
Intel® Clear Video HD Technology |
||
Wireless Network |
WiFi |
802.11a/b/g/n (optional) |
3G/4G |
optional |
|
OS |
Windows |
Support Windows 10 (optional) |
Linux |
Support |
|
Expansion Slots |
mSATA |
1 x mSATA (for SSD) |
mini PCIe |
1 x Half Size mini PCIe (For WiFi/WWAN module) |
|
SIM |
Yes |
|
Rear Panel I/O |
COM |
6 x RS232 DB9 serial ports |
COM2 can be set up as RS-232/RS-485 |
||
Display |
2 x HDMI |
|
USB |
4 x USB 3.0 |
|
2 x USB 2.0 |
||
LAN |
2 x Intal I211-AT Gigabit LAN |
|
Audio |
Realtek ALC662 HD Audio |
|
DC IN |
DC 12V input |
|
Advanced Technologies |
Intel® Virtualization Technology (VT-x) |
Yes |
Intel® Virtualization Technology for Directed I/O (VT-d) |
Yes |
|
Intel® 64 |
Yes |
|
Enhanced Intel SpeedStep® Technology |
Yes |
|
Intel® Fast Memory Access |
Yes |
|
Thermal Monitoring Technologies |
Yes |
|
Intel® Identity Protection Technology |
Yes |
|
Security & Reliability |
Secure Key |
Yes |
Execute Disable Bit |
Yes |
|
Power Adapter |
Input |
AC 100-240V ~ 50-60Hz |
Output |
12V 5A |
|
Safety & EMC |
UL, CE, FCC, RoHS |
|
EMC EN55022 CLASS B |
||
IEC 60950-1 |
||
Energy Saving Standards |
Energy Star Ver. 2.0 |
|
DOE Level VI |
||
ErP CoC Version 5 Tier 2 |
||
Others |
System Input |
DC 12V |
BIOS |
AMI |
|
Consumption |
8W ~ 18W |
|
Cooling |
Fanless System No Noise |
|
Chassis |
Aluminum Alloy |
|
Working Temperature |
-10°C ~ 40°C |
|
Size |
18.7 x 11.1 x 5 cm |
|
Package |
1 x Mini PC, 1 x Power Adopter, 1 x Cord |
